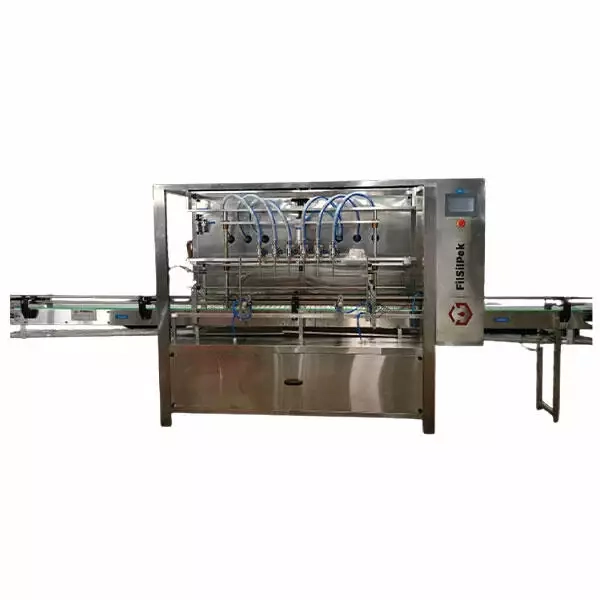

Automatic Lubricant Oil Filling Machine Servo Based

Home 9 Product 9 Automatic Lubricant Oil Filling Machine Servo Based

This is a Fully Automatic Liquid Filling Machine that works on the Servo Gear-Pump based dosing principle of liquid filling and thereby ensuring a high degree of accuracy and efficiency. This is a single line, linear filling system with diving nozzles and is PLC controlled. The machine is very robust in design and will have 4 nozzles for filling. Each filling nozzle will be serviced with an individual Servo-Controlled Gear-Pump. The machine will have a repeat filling accuracy of +/- 0.1% – +/- 0.2%. The machine is primarily used for liquid filling and comes in a compact design, thereby occupying minimum floor space, while delivering maximum performance value.

Application

  • Gear Oil
  • Engine Oil
  • Diesel Exhausted Fluid/Adblue
  • Coolant Oil

Features

  • No Bottle No Filling System.
  • All Contact Parts made of S.S.304
  • Easy to clean
  • Pneumatically controlled nozzles, with ‘No Container No Fill’ arrangement.
  • Drip free nozzle arrangement.
  • Pneumatically operated bottle stopper.
  • PLC Based Operation
  • Repeat accuracy of ± 0.1 to 0.2 % for the specified filling range can be achieved.

Specification

  • Filling Range :- 500 ml to 5 Liter
  • Filling Head:- 2/4/6/8/10/12 head
  • Direction of Movement :- Left to Right
  • Electric Supply :- 420 V / 50HZ
