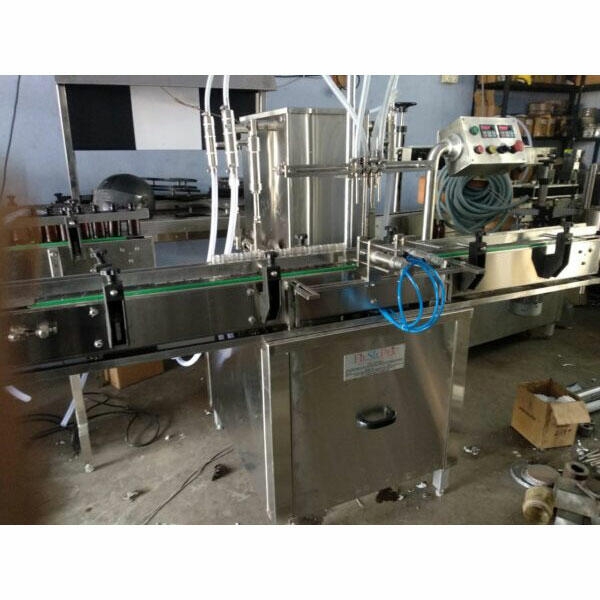

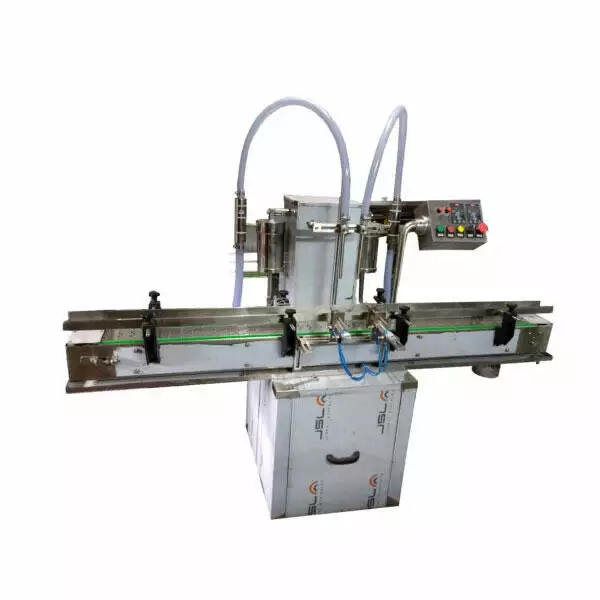

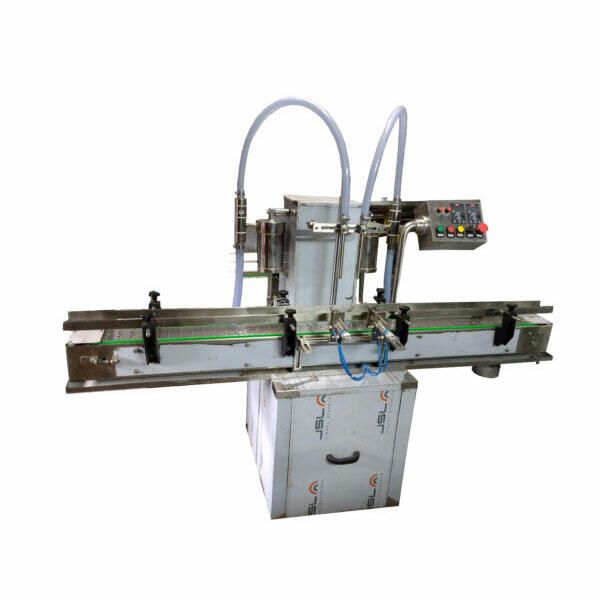

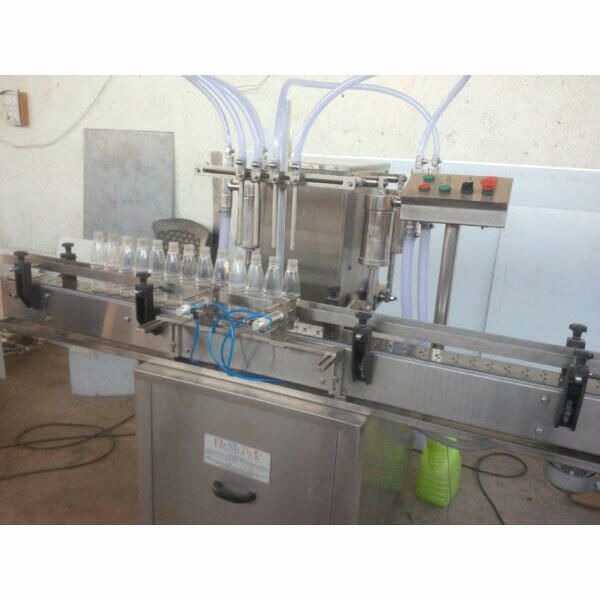

Automatic Two Head mechanical Filling Machine
Automatic Volumetric Liquid Bottle Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is standard features of the machine.
The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.
- Description
Description
Application of Automatic Two Head mechanical Filling Machine
- Any type of liquid.
- Pharmaceuticals.
- Juice.
- Food Industries.
- liquor.
- Oil.
- Pesticides.
- Distillery etc.
Features of Automatic Two Head mechanical Filling Machine
- ±1 % Filling accuracy on single dose.
- No Bottle No Filling System.
- All Contact Parts made of S.S.316.
- Rigid vibration free construction for trouble free performance.
- S.S. Elegantly matt finished body.
- Minimum charge overtime, from one size to another container or fill size.
- Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
- Bottle Stopping arrangement through Pneumatic system.
- Synchronized two nos. A/c drives for main motor & conveyor belt.
- Safety guard for conveyor gearbox, motor and pneumatic cylinders.
Specification of Automatic Two Head mechanical Filling Machine
- Filling Range*** :- 50 ml to 1000 ml.
- Output/Hour* :- 1200 to 2400*.
- Direction of Movement :- Left to Right.
- Number Of Head / Syringe :- 2 Nos.
- Main Machine :- 1 HP / 415 V / 50 HZ.
- Conveyor :- 0.5 HP / 415 V / 50 HZ.
- Power Supply :- Single Phase
