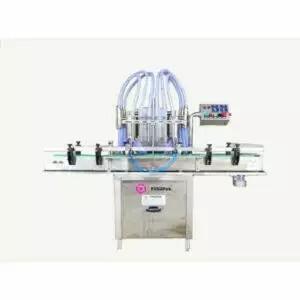

Automatic Oil Filling Machine

Home 9 Product 9 Automatic Oil Filling Machine

Why Automated Oil Filling Machines? – Benefits of Using Automated Oil Filling Machines
Efficiency: An automatic oil-filling machine can fill a large number of bottles in a short amount of time with high accuracy and consistency, which can improve the efficiency of the production line.
Cost-effectiveness: By reducing the need for manual labor and minimizing the possibility of errors, an automatic oil-filling machine can save businesses money in the long run.
Quality control: An automatic oil-filling machine can help ensure that each bottle is filled with the correct amount of oil, reducing the risk of underfilling or overfilling, which can affect the quality of the product and lead to customer dissatisfaction.
Safety: An automatic oil filling machine can help ensure the safety of the workers by minimizing the need for manual labor, and reducing the risk of spills and accidents.
Flexibility: An automatic oil-filling machine can be customized to fill different types of bottles and containers, allowing businesses to accommodate different sizes and shapes of packaging.

The Automatic Oil Filling Machine works on a volumetric basis with diving nozzles. The unit is a compact, multifunctional automatic oil filling solution, contained beautifully in stainless steel, matt finished body, and it includes a stainless steel slat conveyor, a reciprocating nozzle with self-centering devices, and a stainless steel syringe. The machine senses the thingness of the container before the oil fills. In the case of no container, the machine stops the oil filling process.

As industries transposed toward bespoke packaging to meet the needs of a diverse client base where wholesale clients’ hanker for larger pack sizes and retail users are inclined towards smaller pack sizes.

In a Conventional piston/syringe-based oil filling system, syringes of motley sizes are required to meet the needs. These criteria can be met with multi-head servo pump-based liquid filling devices. The PLC-based control panel may effortlessly mutate the pack size without requiring any component changes. The pump regulates the coarse and fine filling for more precision. Empty containers are through the rotating turntable, fed under the discharge nozzle via a slat conveyor. A pneumatic actuator stops the bottle and maintains it in the correct position for filling as soon as the empty containers reach under the discharging nozzle.

When the desired quantity is reached, the machines automatically stop and the containers are released for the next cycle. Containers that have been filled, can be fed into the next process of automatic capping and labeling equipment. Clients can request multi-level password protection, data logging, reporting, and pre-set recipes for one-touch actions. For high-speed, high-volume filling, the machine can be equipped with a 4/6/8 head.

Automated Oil Filling Machine – The Most Common Use cases

  • Any kind of Automatic Liquid Filling requirement
  • Pharmaceuticals – Syrup Filling
  • Juice or any other Beverage Filling
  • Food Processing Industries
  • Liquor Bottle or Container Filling
  • Any kind of Oil Filling
  • Liquid Pesticides Filling
  • Distillery Filling

Robust Features of Automatic Oil Filling Machine

  • ±1 % Filling accuracy on a single pour
  • Zero Bottle, Zero Filling.
  • Contact Parts made of S.S.304
  • Seamless Performance through Rigid Vibration Free Construction
  • Ingenious Architecture with S.S. Matt finished body
  • Versatile and Dynamic Scaling from one size to another container or fill size, with Minor costing,
  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and tranquil conveying.
  • Vivacious Bottle-stopping technology powered by a pneumatic mechanism.
  • Synchronized two nos. A/c drives for main motor & conveyor belt.
  • Safety guard for conveyor gearbox, motor, and pneumatic cylinders.
  • Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.
  • Total GMP model.

Technical Product Specification – Automatic Oil Filling Machine

  • Filling Range:- 50 ml to 1000 ml
  • Output:- 1500 to 3000 per hour
  • The Direction of Movement:- Left to Right
  • Number Of Head / Syringe:- 4 Nos.
  • Main Machine :- 1 HP / 415 V / 50 HZ
  • Conveyor :- 0.5 HP / 415 V / 50 HZ
  • Power Supply:- Single Phase

We also have an automatic oil tin filling machine. To know more click here



1. What is an Automatic Filling Machine?

An automatic filling machine guides organize, fills, and then releases bottles, In an automatic bottle packing line

2. How does an Oil Filling Machine work?

A Volumetric time-based filling principle is used by the automated oil filling machine to fill containers with a consistent volume of oil. Automatic oil filling equipment will ensure that each container is filled with the same amount of oil regardless of the differences in the interior capacities of your containers.

3. What is Volumetric filler?

Filling by volume rather than weight or level is referred to as volumetric filling. One of the most precise filling technologies available today is a liquid volumetric piston filler.

4. How much does an Automatic Oil Filling Machine cost?

To know more on the cost factor, contact us at [email protected] or post an inquiry on the contact us section
