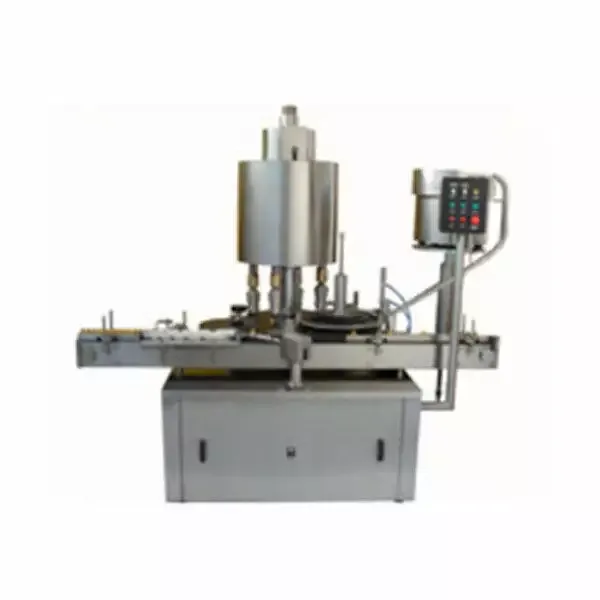

Automatic Pick and Place Capping Machine
Automatic Pick And Place sealing machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine
Application of Automatic Pick and Place Capping Machine
- Food Industry
- Pharmaceuticals
- Beverages
- Chemical Industry
- Distillary
Features of Automatic Pick and Place Capping Machine
- No container No cap arrangement.
- SS elegantly matt finished body.
- Single motor synchronizes conveyor, star wheel.
- Adjustable height of conveyor belt, to align with other machine of the line.
- Sealing pressure can be varied to suit different gauges and size of caps.
- Low noise level, low power consumption’s.
- Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying.
- SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
- Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
Specification of Automatic Pick and Place Capping Machine
- Output/Hour :-4200 to 5400 **
- No. of Sealing Head :- 4,6,8 (As per customer specification)
- Direction of Movement :- Left to Right
- Main Motor:- 1 HP / 415 Volts / 50 Hz.
